ElecFreaks Sensor:bit for micro:bit

DIMENSION

DISPLAY

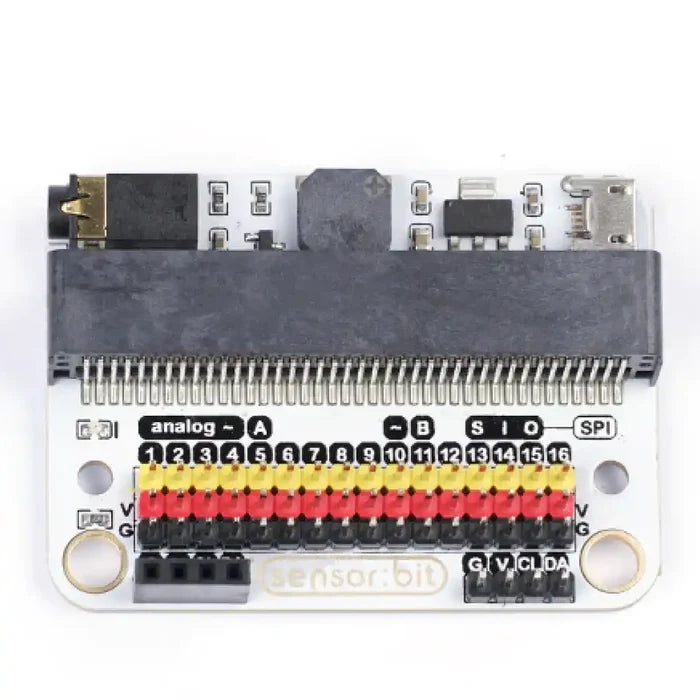

DEFINITION OF PINS

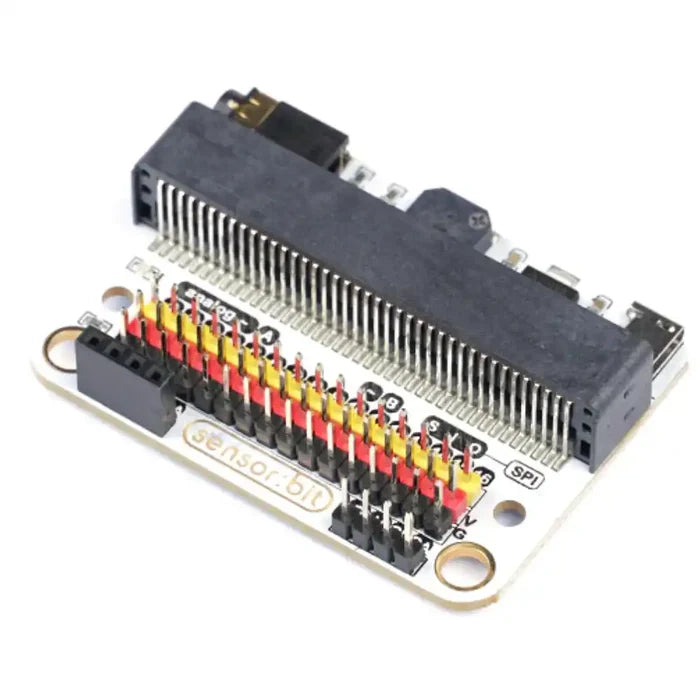

INTRODUCTION OF MAJOR COMPONENTS

Audio Jack

The headphone is controlled by the P0 port. Plug in your headphone, and the buzzer will disconnect automatically.

Buzzer

The buzzer is controlled by the P0 port. Plug in your headphone, and the buzzer will disconnect automatically.

16 Channel Standard GVS Port

This is a standard GVS interface with 16 channels. It can extend a 3V electric brick module.

I2C Port

This is a group of I2C female headers, which can connect with the OLED module directly.

This is a group of I2C male headers.

HARDWARE ASSEMBLY

Plug your micro:bit into sensor:bit.

PROGRAMMING

Navigate to the programming interface of Makecode online editor. Write your code to make the buzzer on sensor:bit plays music.
You can see the whole program from the link
Or you can download it from the page below:

RESULT

Press button A on micro:bit, the buzzer starts to play music. Plug in your headphone to sensor:bit, the buzzer stops playing music, and you can hear the music through your headphone.

SPECIFICATION

Product Name Sensor:bit
Version No. V1.6
SKU EF03415
Working Voltage 2.7~3.3V
Buzzer Support
Interface Support
Size 57mm x 42mm
Net weight 18g
